Project - Gaznat methane synthesis

Green Hydrogen Systems is delivering one HyProvide® A90 electrolyser to public gas company Gaznat SA for a new innovative methane synthesis project in Switzerland.

Key Facts

1 x A90

Product

195

Production (kg H2/day)

30

Outlet pressure (bar)

Switzerland

Project location

HyProvide electrolyser for swiss Innovation Lab

A complete green hydrogen plant for innovative methane synthesis

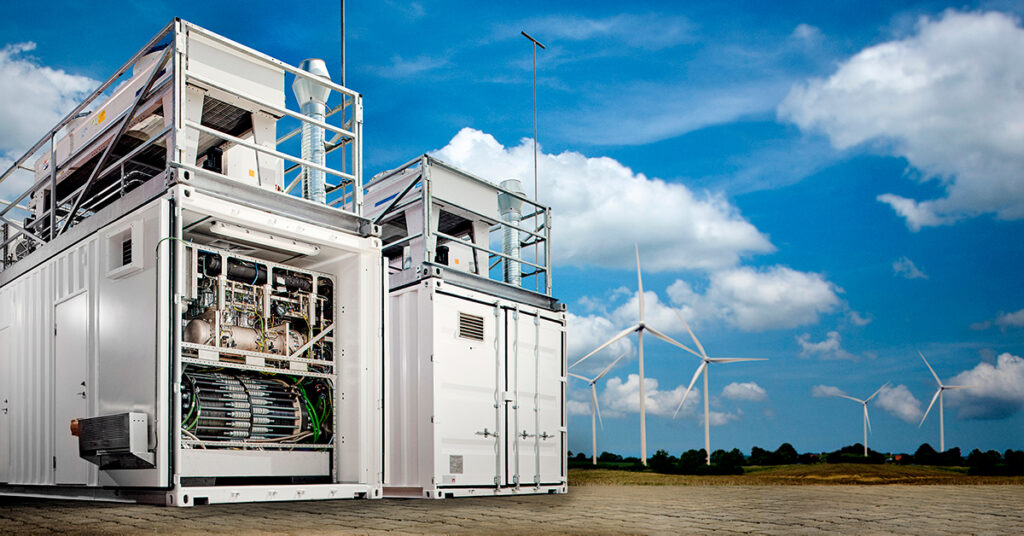

For the project, GHS will deliver one HyProvide® A90 electrolyser with a capacity of ~0.5 MW for the production of green hydrogen from renewable solar energy. Manufactured by Green Hydrogen Systems and operated by Gaznat, the electrolyser will be deployed in a 20ft container as a complete green hydrogen plant.

When fully operational, the ordered electrolyser will have the capacity to supply approximately 195 kg of green hydrogen per day. The hydrogen will be used to produce synthetic methane with a new and innovative methanation reactor developed by Gaznat, Swiss Federal Institute of Technology in Lausanne (EPFL) and GRZ Technologies. The synthetic methane will be injected into the distribution grid covering the region of Chablais in Switzerland.

Green Hydrogen Systems will be responsible for delivering the electrolyser and will support the project with on-site maintenance and remote monitoring and support under a three-year service agreement.

Gaznat_FR-Schéma PtG_2 (image used at the courtesy of Gaznat SA)
